Rooftop Harvesting Module
Furaat RHM-57 – Rooftop Harvesting Module
-
Application: Rooftop rainwater harvesting - Material: M25 Grade Precast Concrete with SS 316 components
- Filtration Capacity: Up to 7.5–9 KL per hour
- Design: Compact octagonal, floor-mounted unit (390 mm diameter, 570 mm height)
Key Features
High Efficiency Filtration
- 250-micron SS 316 mesh filter
- Large filtration area (~1100 cm²)
Maximum Water Recovery
- Achieves >99% water recovery, higher than conventional vortex filters
User-Friendly Maintenance
- Removable push-fit filter spine for easy cleaning
- Accessible through precast lid
Smart Functional Design
- Built-in first flush system
- Separate maintenance flush and overflow provision
Flexible Installation
- Inlet: 90/110 mm pipe (left or right entry options)
- Outlet: 63 mm pipe (left, right, or bottom discharge options)

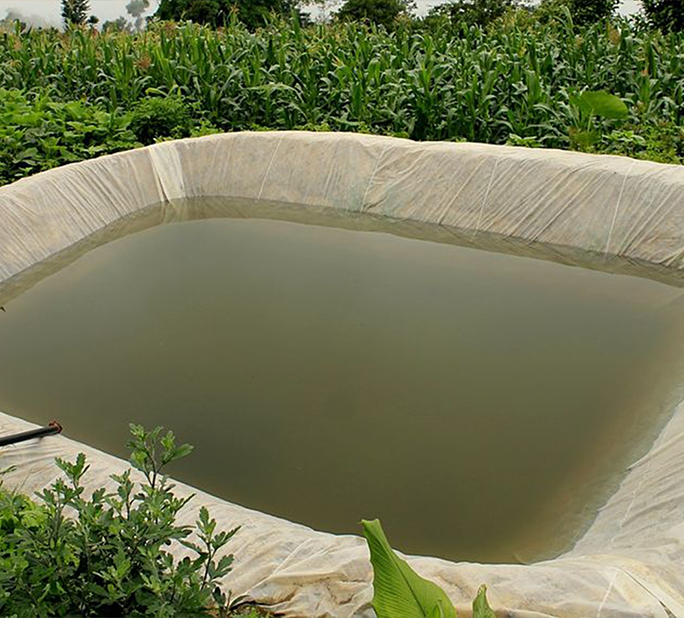

Usage
Ideal for direct rooftop rainwater filtration
Filtered water can be:
- Stored in tanks

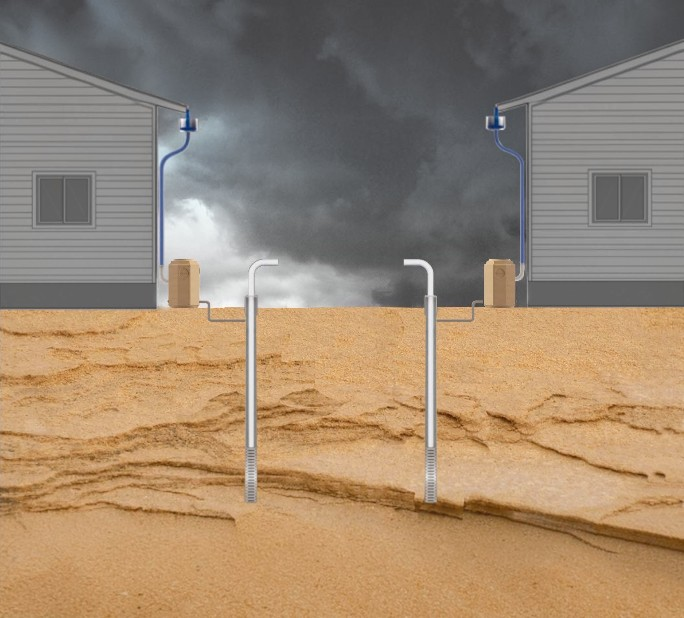

- Diverted to recharge wells for groundwater replenishment
Furaat Rooftop Harvesting >> Easy >> Effortless » Efficient
Easy Installation
01.
02.
03.
06.
05.
04.
Effortless Maintenance
01.
02.
03.
04.
05.
06.
07.
08.
09.
Photos & videos
Let's Work Together to Save Rainwater
Get in touch with us for customized rainwater harvesting solutions
